4-zone or 2-loop hybrid detection panel with capacity to combine up to 32 analog and conventional devices per zone and up to 64 per loop, with direct connection to EH-SYNC® panel network, 2.7″ multi-language TFT touchscreen with log of up to 10,000 events. 2 programmable supervised I/O 24V. 300mA. 2 independent relay outputs for alarm/fault.

Configuration and commissioning from the panel itself and via USB port and/or onboard Bluetooth without the need for an additional card using the Tools® app. MODBUS protocol available via Ethernet port. Ethernet and WiFi ports included and optionally with 4G module (ref. W4G), for remote management and access to Nusku® platform with included license that enables ARC connection services, remote maintenance, remote programming of systems and alarm video verification from camera (Ref.WCON) with direct connection to zone or loop.

White RAL 9010 ABS plastic enclosure for surface or flush mounting. Dimensions: 360 mm x 400 mm x 100 mm. CPR certified EN54-2, EN54-4, EN54-13 and EN54-21. Requires two 12 V/7 Ah batteries (not included).

8-zone or 4-detection-loop hybrid panel, with the ability to combine up to 32 analogue and conventional devices per zone and up to 64 per loop, with direct connection to the EH-SYNC® panel network, 2.7″” multilingual TFT touchscreen with logging of up to 10,000 events. 2 supervised programmable 24 V I/Os. 300 mA. 2 independent relay outputs for alarm/fault.

Configuration and commissioning from the panel itself and via USB port and/or onboard Bluetooth without the need for an additional card using the Tools® app. MODBUS protocol available via Ethernet port. Ethernet and WiFi ports included and optionally with 4G module (ref. W4G), for remote management and access to Nusku® platform with included license that enables ARC connection services, remote maintenance, remote programming of systems and alarm video verification from camera (Ref.WCON) with direct connection to zone or loop.

White RAL 9010 ABS plastic enclosure for surface or flush mounting. Dimensions: 360 mm x 400 mm x 100 mm. CPR certified EN54-2, EN54-4, EN54-13 and EN54-21. Requires two 12 V/7 Ah batteries (not included).

“

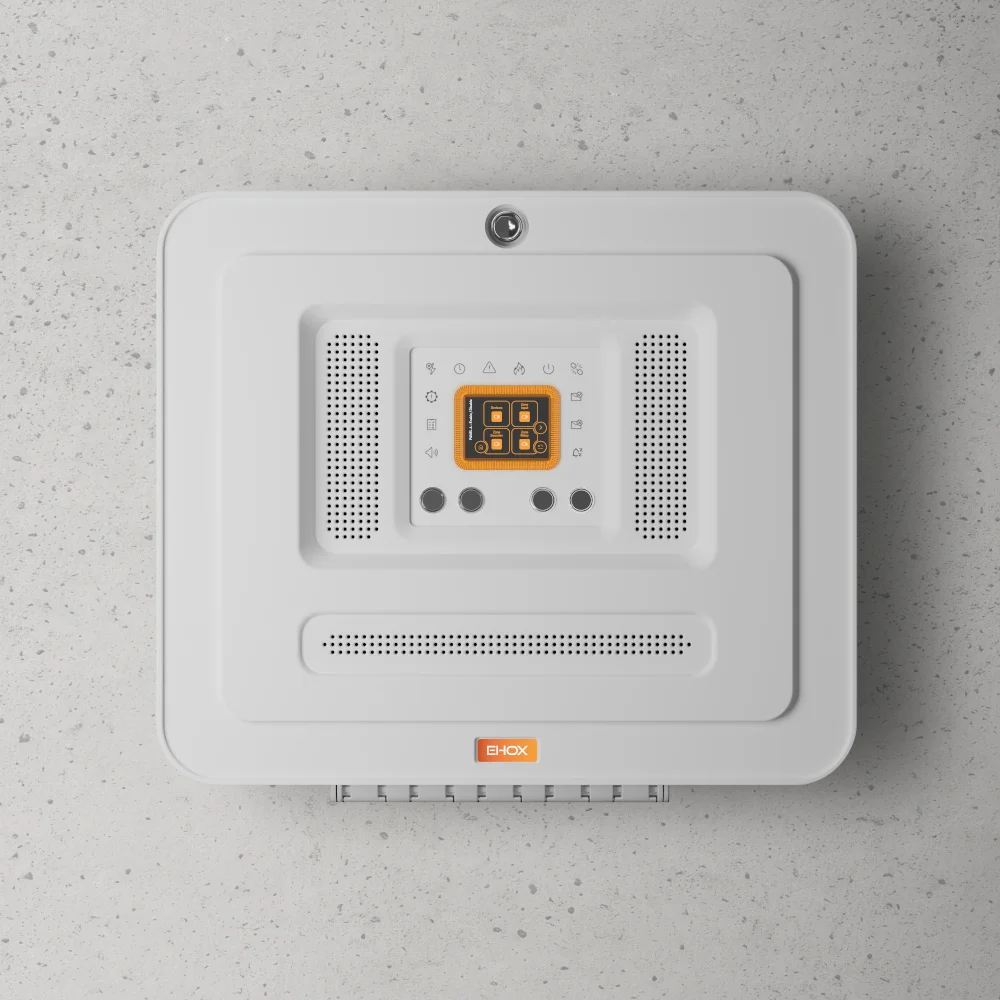

Hybrid panel with 12 zones or 4 loops, expandable to 16 zones or 8 loops via a 4-zone detection card (Ref. TLZX). Capable of combining up to 32 analog and conventional elements per zone and up to 64 per loop. Features direct connection to the EH-SYNC® panel network and a 2.7″ multi-language TFT touchscreen with a log of up to 10,000 events. 2 supervised programmable 24V I/O. 300mA. 2 independent relay outputs for alarm/fault.

Configuration and commissioning from the panel itself or via on-board USB and/or Bluetooth ports using the Tools® app, without the need for additional cards. MODBUS protocol available via Ethernet port. Ethernet and Wi-Fi ports included, with optional 4G module (ref. W4G) for remote management and access to the Nusku® platform. Includes a license for CMS connection services, remote maintenance, remote system programming, and video verification via camera (Ref. WCON) with direct connection to zone or loop.

White RAL 9010 ABS plastic housing for surface or flush mounting. Dimensions 360mm. x 400mm. x 100mm. CPR EN54-2, EN54-4, EN54-13, and EN54-21 certified. Requires two 12V/7Ah batteries, not included.

“
